KAK Braided Vibration Absorbers (Vibration Eliminators)
KAK Vibration Absorbers are high-performance flexible connectors engineered to isolate dynamic vibration and dampen pulsations generated by compressors in commercial HVAC and refrigeration systems.
Designed for durability and safety, each unit features a corrugated stainless steel core reinforced with high-tensile stainless steel braiding and heavy-duty copper ODF ends for a reliable brazed connection.
Key Features & Benefits:
- Superior Vibration Isolation: Effectively absorbs compressor-induced vibration and high-frequency pulsations to maintain system integrity.
- Leak Prevention: Protects copper tubing from fatigue-related cracking, significantly reducing the risk of costly refrigerant leaks.
- Acoustic Noise Reduction: Dampens mechanical stress and airborne noise for quieter system operation.
- Multi-Refrigerant Compatibility: Optimized for use with R22, R410A, R32, R134a, R290, and CO₂ systems.
- Extreme Durability: Precision-engineered to withstand high-pressure environments and thermal expansion.
Engineering Specifications:
- Core Construction: Flexible corrugated stainless steel inner hose.
- Reinforcement: High-density T304 stainless steel wire braiding.
- Connection Ends: Pure copper ODF (Solder) ends for seamless brazing installation.
- Max Working Pressure: Up to 4.2 MPa (600 psi) with a 5:1 burst pressure safety factor.
- Temperature Range: -40°C to +120°C (-40°F to +248°F).
- Compliance: 100% helium leak-tested for maximum reliability.
Common Applications:
Variable Refrigerant Flow (VRF/VRV) Systems
Commercial Air Conditioning & Heat Pump Units
Condensing Units & Industrial Chillers
Suction and Discharge Lines in Rack Systems
Regular Sizes

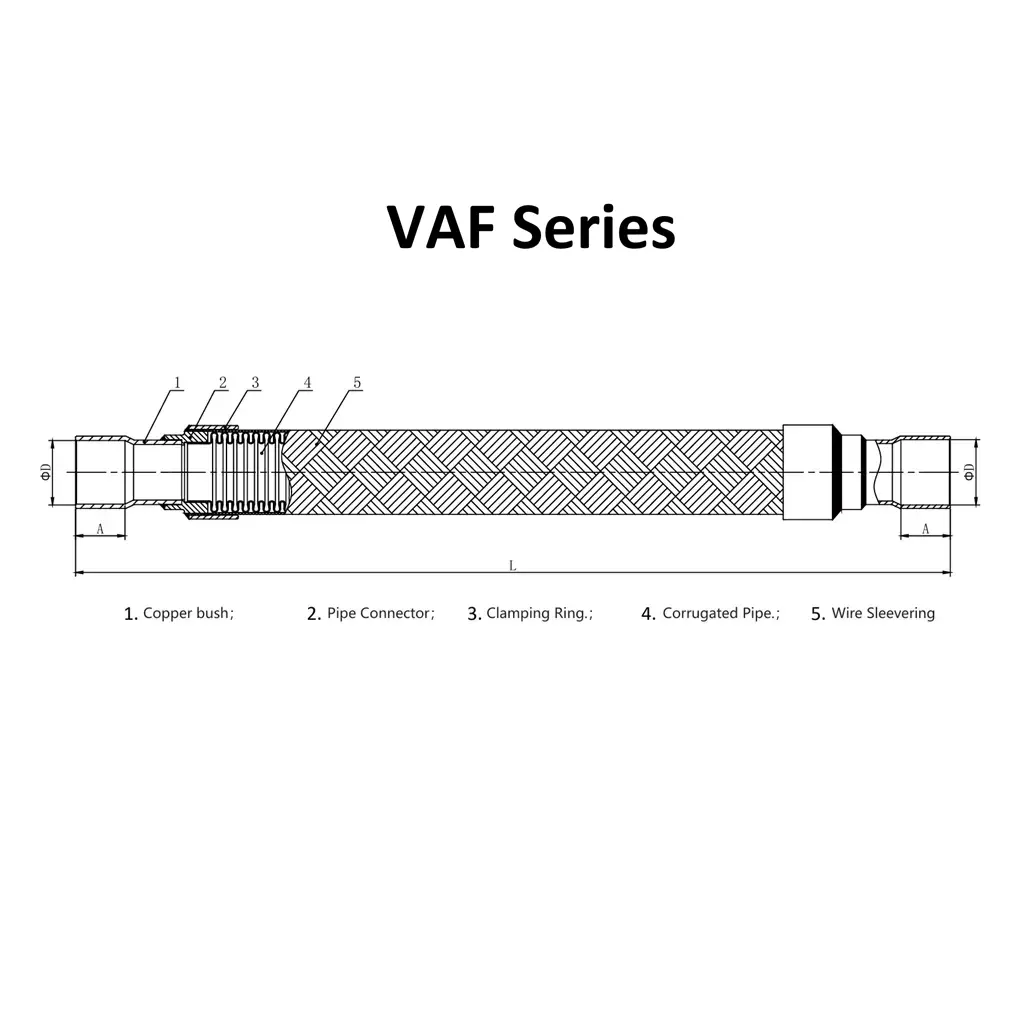

KAK-VAF Series Technical Specifications (High Pressure Series)
| Model | Conn. Size (Inch) | Outline Dimensions (mm) | Max Working Pressure (MPa) | Min. Bend Radius (mm) | |||
|---|---|---|---|---|---|---|---|
| A | L | D | Static | Dynamic | |||
| KAK-VAF-038-10 | 3/8 | 16 | 230 | 9.70 | 6.0 | 80 | 180 |
| KAK-VAF-012-12 | 1/2 | 10 | 250 | 12.80 | 95 | 215 | |
| KAK-VAF-058-16 | 5/8 | 12 | 270 | 16.10 | 120 | 270 | |
| KAK-VAF-034-19 | 3/4 | 14 | 290 | 19.10 | 145 | 325 | |
| KAK-VAF-078-22 | 7/8 | 17 | 300 | 22.30 | 160 | 360 | |
| KAK-VAF-100-25 | 1 | 24 | 330 | 25.60 | 5.0 | 175 | 400 |
| KAK-VAF-118-28 | 1-1/8 | 24 | 330 | 28.70 | 175 | 400 | |
| KAK-VAF-114-32 | 1-1/4 | 38 | 380 | 32.10 | 225 | 510 | |
| KAK-VAF-138-35 | 1-3/8 | 25 | 380 | 35.20 | 225 | 510 | |
| KAK-VAF-158-42 | 1-5/8 | 30 | 430 | 41.50 | 4.5 | 280 | 640 |
| KAK-VAF-218-54 | 2-1/8 | 65 | 520 | 54.20 | 2.3 | 350 | 800 |
| KAK-VAF-258-67 | 2-5/8 | 75 | 610 | 66.80 | 390 | 845 | |
| KAK-VAF-318-79 | 3-1/8 | 80 | 680 | 79.60 | 480 | 1000 | |

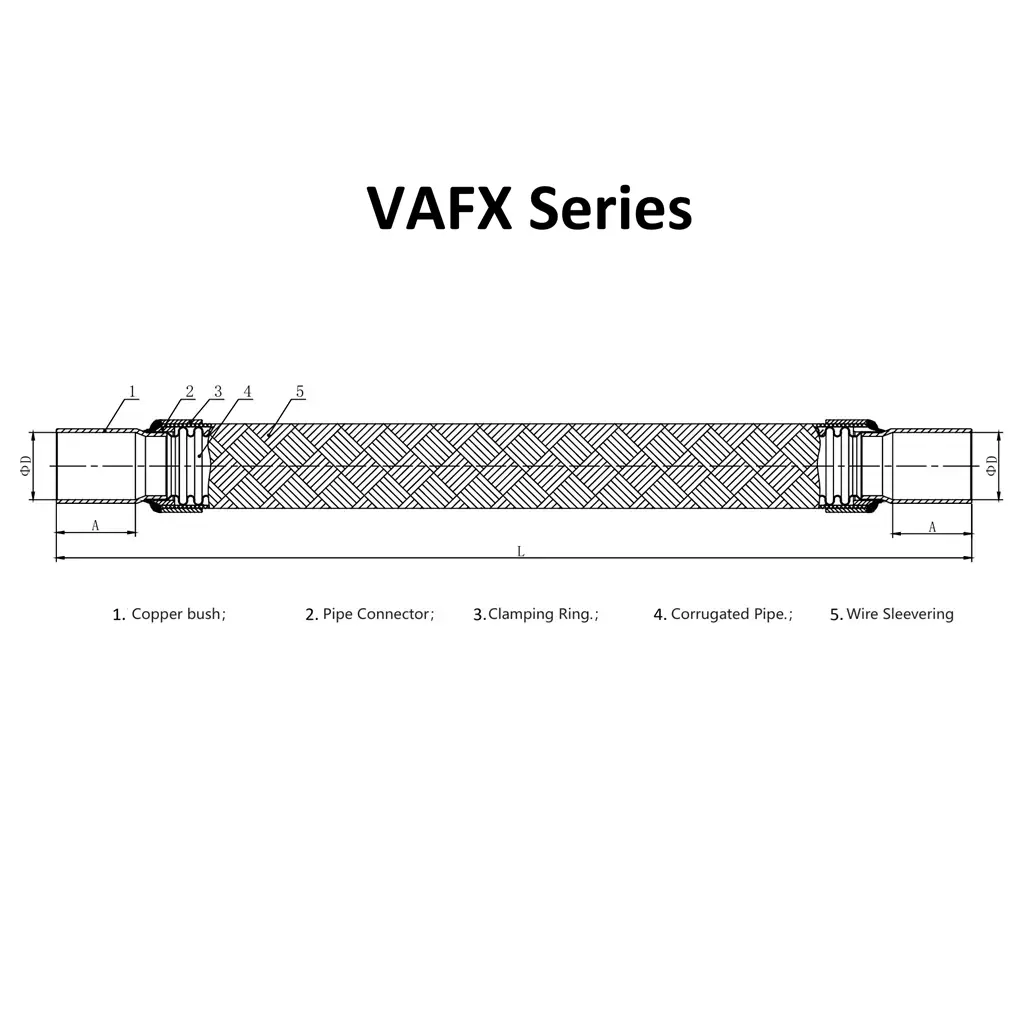

KAK-VAFX Series Technical Specifications (SUS316L Bellows)
| Model | Conn. Size (Inch) | Outline Dimensions (mm) | Max Working Pressure (MPa) | Min. Bend Radius (mm) | |||
|---|---|---|---|---|---|---|---|
| A | L | D | Static | Dynamic | |||
| KAK-VAFX-038-10 | 3/8 | 16 | 210 | 9.70 | 4.5 | 80 | 180 |
| KAK-VAFX-012-12 | 1/2 | 16 | 230 | 12.80 | 95 | 215 | |
| KAK-VAFX-058-16 | 5/8 | 20 | 250 | 16.10 | 120 | 270 | |
| KAK-VAFX-034-19 | 3/4 | 22 | 260 | 19.10 | 145 | 325 | |
| KAK-VAFX-078-22 | 7/8 | 26 | 300 | 22.30 | 160 | 360 | |
| KAK-VAFX-100-25 | 1 | 31 | 330 | 25.60 | 175 | 400 | |
| KAK-VAFX-118-28 | 1-1/8 | 28 | 330 | 28.70 | 175 | 400 | |
| KAK-VAFX-114-32 | 1-1/4 | 50 | 400 | 32.10 | 4.2 | 225 | 510 |
| KAK-VAFX-138-35 | 1-3/8 | 35 | 400 | 35.20 | 225 | 510 | |
| KAK-VAFX-158-42 | 1-5/8 | 42 | 400 | 41.50 | 3.0 | 280 | 640 |
(Custom lengths and diameters available for OEM/ODM orders.)
FAQ
Q1: What is a vibration eliminator in HVAC?
A: A vibration eliminator absorbs mechanical and dynamic vibrations from compressors, preventing copper tube fatigue and refrigerant leakage in HVAC systems.
Q2: How does a vibration absorber work?
A: It uses a stainless steel braided hose to flex and absorb vibration energy, isolating compressor movement from the piping network.
Q3: What is the difference between a vibration eliminator and isolator?
A: An eliminator is installed directly in refrigerant lines, while an isolator typically supports the compressor base. Both reduce vibration and noise.
Q4: Can KAK vibration eliminators be used for refrigeration?
A: Yes, they are ideal for air conditioning, heat pumps, and commercial refrigeration systems using R22, R410A, R32, or R134a refrigerants.
Q5: What materials are used in KAK eliminators?
A: Each unit features a stainless steel braided hose and seamless copper ODF tube ends for corrosion resistance and strong brazed sealing.
