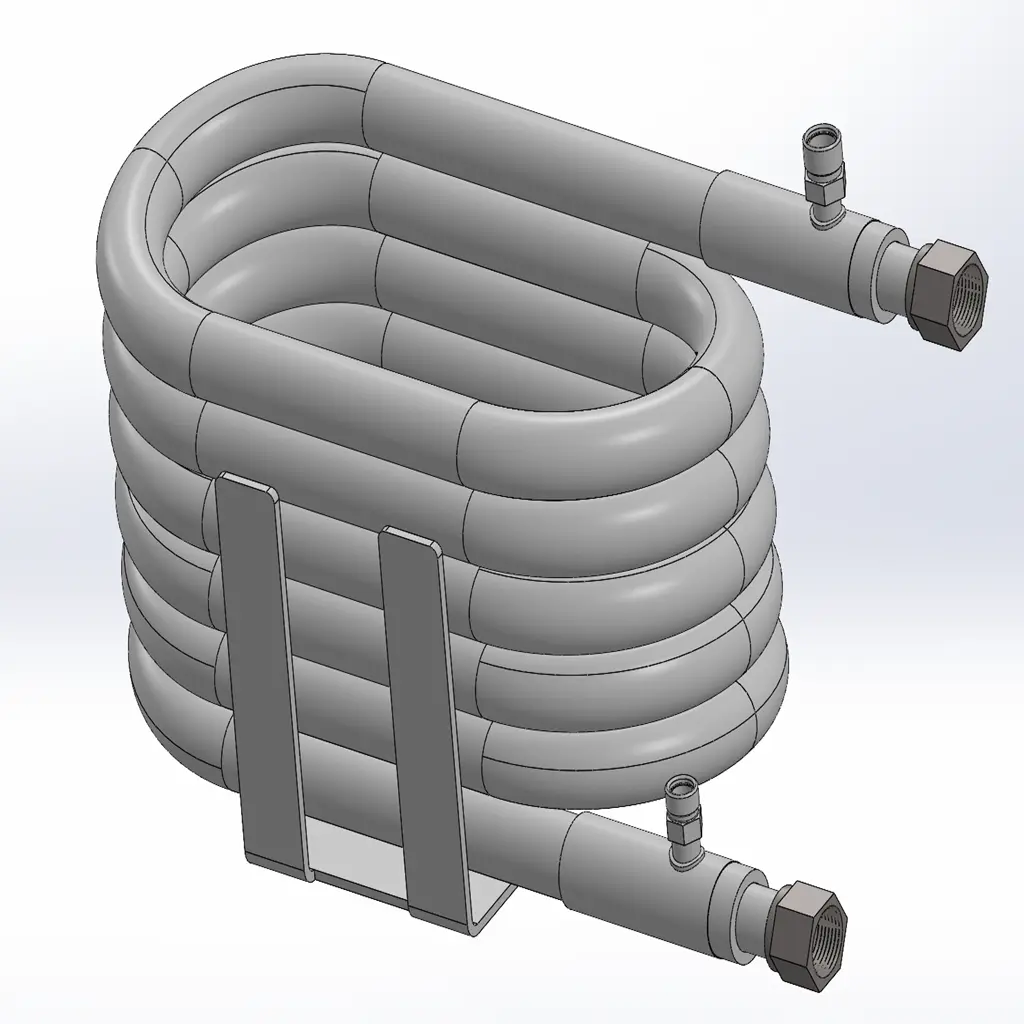

High-Performance Automotive Coaxial Heat Exchanger with O-Ring MIO Connections for MAC Systems

Engineered specifically for custom automotive and transit vehicle refrigeration (HVAC) systems, this high-performance MIO Automotive Coaxial Heat Exchanger is optimized for compact and durable thermal management. Featuring heavy-duty Male Inverted O-ring (MIO) connections, it guarantees a superior, leak-proof seal that can withstand the severe vibration and pressure cycling common in mobile applications. This coaxial design is ideal as a water-cooled condenser in automotive-grade chillers or as a high-pressure heater core in heat pump systems for electric vehicles (EVs). It combines a space-saving footprint with massive surface area to maximize heat transfer with alternative refrigerants like R134a, R1234yf, or CO2.

---

Key Technical & Design Features

To meet the rigorous demands of modern vehicle engineering and mobile HVAC applications, our coaxial heat exchangers are manufactured using advanced tube-in-tube technology. The outer premium steel or copper tube shell provides maximum physical protection, while the inner convoluted multi-channel design ensures high fluid turbulence. This significantly enhances the overall heat transfer coefficient while keeping the total internal refrigerant volume to an absolute minimum.

Additionally, every unit comes integrated with a heavy-duty, reinforced mounting bracket to distribute mechanical stress evenly. This ensures the exchanger remains securely fixed under hood or within the vehicle chassis, entirely preventing any fatigue cracking near the joint areas caused by prolonged road shock.

---

Why Partner with Ningbo FXT?

As a trusted industrial partner and leading specialist in manufacturing high-precision HVACR components, Ningbo FXT provides unique strategic advantages to global B2B buyers, distributors, and OEMs:

• Unmatched Customization Flexibility: We understand that under-hood spaces are heavily restricted. Our technical team can seamlessly adjust the outer dimensional profiles, coil diameters, multi-layer stacked configurations, and customized mounting bracket positions based strictly on your 2D/3D layout constraints.
• Highly Competitive Factory Pricing: By optimizing our raw material supply chain and utilizing automated manufacturing processes, we are able to eliminate intermediate trading costs, offering direct commercial factory pricing structures that significantly lower your project’s total Bill of Materials (BOM) costs.
• Fast & Reliable Production Lead Times: Supported by dedicated assembly lines and lean manufacturing principles, we guarantee stable production turnaround cycles, ensuring your scheduled fleet rollouts or product development stages are never delayed by part supply bottlenecks.
• High-Efficiency Service & Communication: We pride ourselves on rapid technical responses. Our specialized overseas sales and engineering specialists work closely together to ensure zero-delay technical alignment, providing smooth and precise B2B commercial cooperation from initial inquiry to final delivery.

---

Frequently Asked Questions (FAQ)

• Q1: How do MIO fittings enhance this heat exchanger for automotive applications?

  A: Mobile air conditioning (MAC) systems operate in extreme vibration and thermal shock environments. MIO (Male Inverted O-ring) fittings are the industry standard for their reliable, vibration-resistant, zero-leak sealing capability, making them ideal for automotive under-hood and cabin HVAC connections where traditional flares might fail.

• Q2: Is this compact coaxial design suitable for electric vehicles (EV) and battery cooling systems?

  A: Absolutely. Its compact footprint, combined with high thermal efficiency per unit volume, makes it a perfect solution for the integrated thermal management systems in EVs. It is often used to cool battery coolant loops using the AC refrigerant, or as a cabin heat-pump evaporator/condenser.

• Q3: Does this heat exchanger meet typical automotive material standards and working pressures?

  A: Yes. We customize our automotive coaxial exchangers using premium materials (such as optimized copper or stainless steel alloys) that are compatible with all modern vehicle refrigerants. They are designed and tested to meet or exceed typical automotive burst and operating pressure requirements, safely operating under sustained working pressures up to 30 bar. Every single batch undergoes helium leak testing and burst testing prior to dispatch.

• Q4: Can this coaxial heat exchanger be customized for specific vehicle chassis constraints?

  A: Yes. We understand that under-hood space in modern passenger vehicles, commercial buses, and specialty trucks is extremely limited. We offer flexible customization options regarding the coil diameter, the number of stacked layers, mounting bracket position, and specific MIO thread sizing to ensure a seamless drop-in fit for your unique layout.
