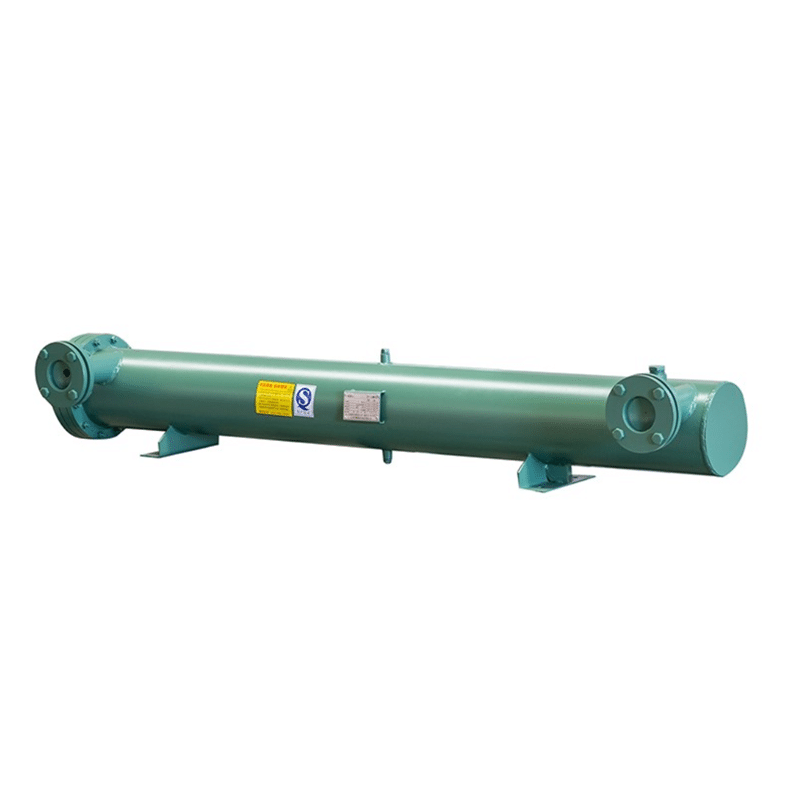

Designed for demanding industrial environments, our U-Tube Shell and Tube Heat Exchanger provide unmatched reliability by eliminating thermal stress. The specialized floating U-bundle design allows for unrestricted thermal expansion and contraction, making it the premier choice for systems facing rapid temperature fluctuations.
Advanced Engineering for Thermal Resilience
In high-performance refrigeration cycles, thermal stress is the leading cause of heat exchanger failure. Our U-tube design addresses this by anchoring the tube bundle at only one end. As temperatures shift, the “U” bend allows the tubes to move freely within the shell, preventing the joint fatigue and cracking often seen in fixed straight-tube designs.
1. Single-Tubesheet Structural Integrity
By utilizing a single-tubesheet construction, we significantly reduce the number of potential leakage points. This simplified sealing interface enhances overall system safety and is particularly beneficial for high-pressure applications or when using expensive eco-friendly refrigerants. Our precision machining ensures a perfect fit between the tubes and the tubesheet, guaranteed by rigorous leak testing.
2. Withdrawable Bundle for Inspection
Maintenance doesn’t have to be a headache. The entire U-tube bundle is designed to be fully withdrawable from the shell. This feature allows your service team to perform detailed internal inspections of the shell side and conduct thorough chemical cleanings. This “service-first” approach ensures that your system maintains its Energy Efficiency Ratio (EER) throughout decades of operation.
3. Precision Cooling Capacity
With a cooling capacity range from 18kW to 3200kW, these units are versatile enough for precision laboratory chillers as well as massive industrial cooling plants. Each unit is thermally modeled to ensure it meets your specific scfm and pressure drop requirements, ensuring a perfect match for your compressor’s performance curve.
Technical Specifications & Standards
- Capacity Range: 18kW to 3200kW
- Material Versatility: Available in high-grade copper, or customized Titanium and Stainless Steel (316L) for corrosive brine or seawater applications.
- Standardized Compliance: Fully compliant with PED (EU CE), DOSH (Malaysia), and CCS marine standards.
- Refrigerant Compatibility: Optimized for R22, R404A, R134a, R407C, and low-GWP refrigerants.
- Application Scope: Widely used in precision chillers, heat recovery, and high-pressure refrigeration systems.
The Complete Cooling Ecosystem
Maximizing the efficiency of an Environmental Control Unit (ECU) requires a holistic approach to component selection. We recommend integrating our U-tube evaporators with our high-standardized parts:
Explore Our Coaxial Tube-in-Tube Series: For smaller-scale projects requiring extreme anti-freeze protection, our coaxial series offers a compact alternative with high turbulence and scale resistance.
Standardized HVAC Parts: To complete your installation, we offer Bi-directional Filter Driers and Insulated A/C Copper Pipes that meet strict international OD and insulation thickness standards.
Alternative: Straight-Tube DX Evaporators: If your system operates under stable temperatures and requires frequent mechanical tube brushing, our straight-tube dry expansion series may be more suitable for your维保 (maintenance) routine.
Frequently Asked Questions
Q: Why choose a U-tube design over a straight-tube evaporator?
A: The U-tube design is superior for systems with high temperature differences. Because the bundle is only fixed at one end, it can expand freely without putting stress on the welds, significantly extending the equipment’s lifespan in fluctuating conditions.
Q: Is this unit suitable for marine environments?
A: Absolutely. With optional CCS certification and the ability to manufacture bundles from seawater-resistant materials like Cu-Ni or Titanium, our U-tube heat exchangers are ideal for offshore and shipboard refrigeration.
Q: What is the lead time for custom PED-certified units?
A: As we manage a production line of 80+ units monthly, we maintain a streamlined process for certified vessels. Contact our engineering team with your specific requirements for a detailed production schedule.
