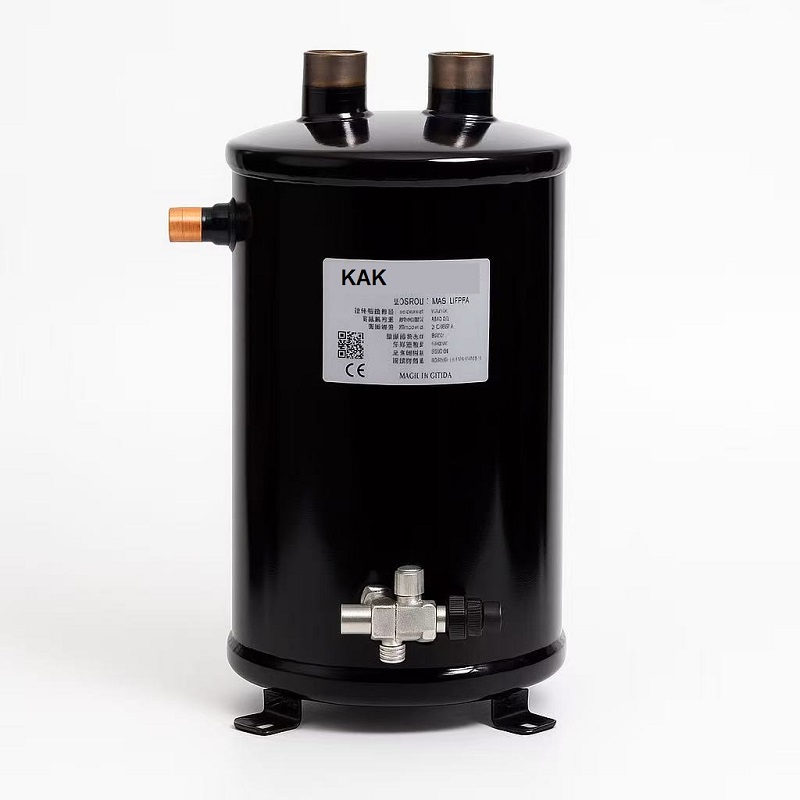

Our 3-in-1 refrigeration component combines a suction line accumulator, liquid receiver, and heat exchanger into a single compact unit.
This integrated design improves refrigerant circulation, prevents compressor liquid slugging, and enhances cooling efficiency.
Ideal for refrigeration systems, cold rooms, heat pumps, and HVAC/R equipment requiring space-saving and reliable solutions.
Key Functions:
• Liquid Storage: Acts as a liquid receiver to balance refrigerant charge.
• Gas-Liquid Separation: Functions as a suction accumulator to protect compressors.
• Heat Exchange: Provides subcooling and reduces refrigerant flash gas, increasing system efficiency.
⸻
📊 Size Chart (regular models, customization available)
| Model No. | Compressor (HP) |
Evaporating Temp (°C) |
High Pressure Total Volume (L) |
Low Pressure Total Volume (L) |
High Pressure Conn. |
Low Pressure Conn. |

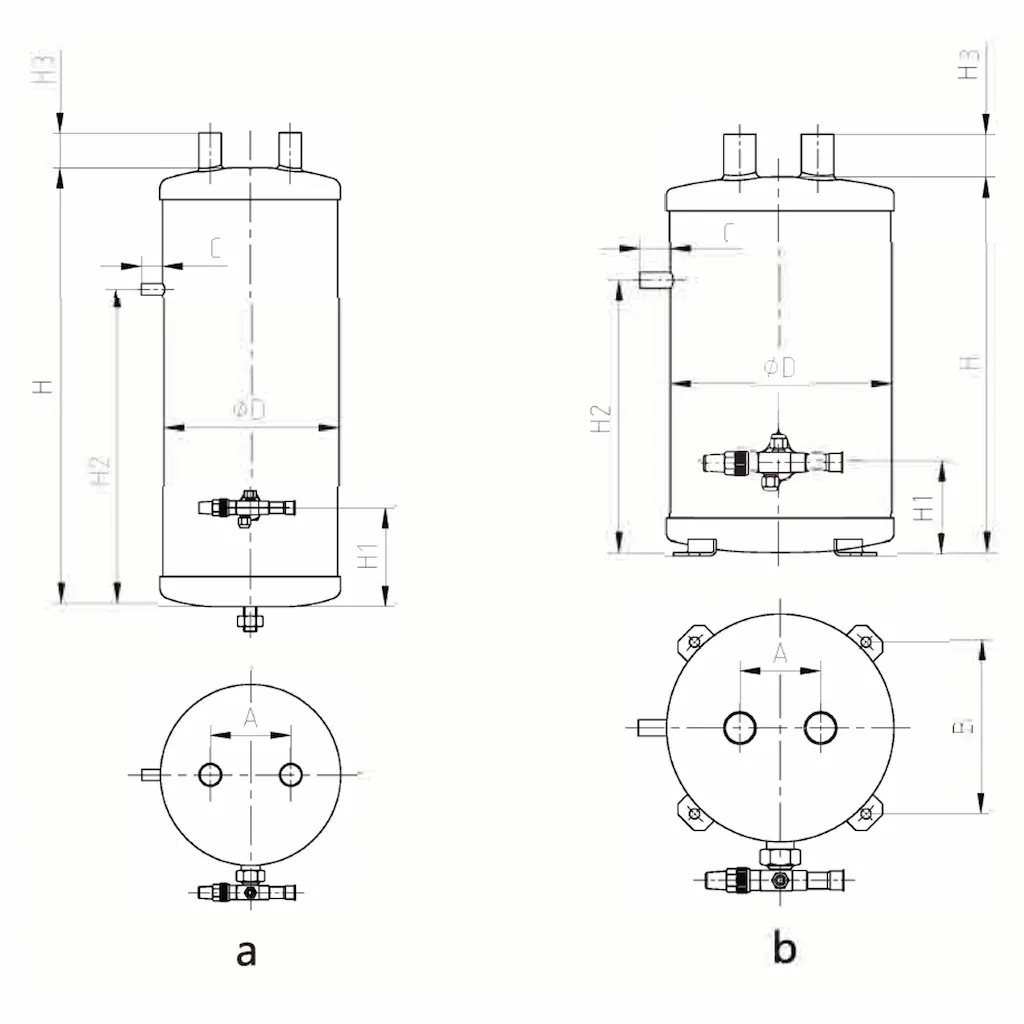

Dimensions (mm) | Schematic Drawing |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD (mm) |
H (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
A (mm) |
B (mm) |
C (mm) |
||||||||
| KAK-304 | 1 | +5 | 0.9 | 0.5 | 3/8 | 1/2 | 140 | 240 | 60 | 185 | 40 | 48 | – | 35 | a |
| 3/4 | -10 | ||||||||||||||
| 1/2 | -30 | ||||||||||||||
| KAK-305 | 2 | +5 | 1.7 | 0.8 | 3/8 | 5/8 | 140 | 245 | 60 | 190 | 40 | 48 | – | 35 | a |
| 1.5 | -10 | ||||||||||||||
| 1 | -30 | ||||||||||||||
| KAK-307 | 5 | +5 | 3.2 | 2.4 | 3/8 | 7/8 | 165 | 315 | 60 | 255 | 40 | 70 | – | 40 | a |
| 3 | -10 | ||||||||||||||
| 2 | -30 | ||||||||||||||
| KAK-411 | 10 | +5 | 4.5 | 4.2 | 1/2 | 1-1/8 | 219 | 336 | 74 | 256 | 45 | 80 | 170 | 40 | b |
| 7.5 | -10 | ||||||||||||||
| 5 | -30 | ||||||||||||||
| KAK-513 | 15 | +5 | 5.8 | 5.2 | 5/8 | 1-3/8 | 219 | 396 | 74 | 308 | 45 | 80 | 170 | 40 | b |
| 10 | -10 | ||||||||||||||
| 7.5 | -30 | ||||||||||||||
| KAK-515 | 20 | +5 | 8 | 6.3 | 5/8 | 1-5/8 | 219 | 486 | 74 | 398 | 50 | 80 | 170 | 40 | b |
| 15 | -10 | ||||||||||||||
| 10 | -30 | ||||||||||||||
| KAK-721 | 40 | +5 | 12 | 10 | 7/8 | 2-1/8 | 273 | 505 | 120 | 385 | 50 | 108 | 240 | 45 | b |
| 30 | -10 | ||||||||||||||
| 20 | -30 | ||||||||||||||
(Customized dimensions, connections, and refrigerant compatibility available.)
