Manufacturer of Copper U Bend Fittings – Bulk & OEM Supply

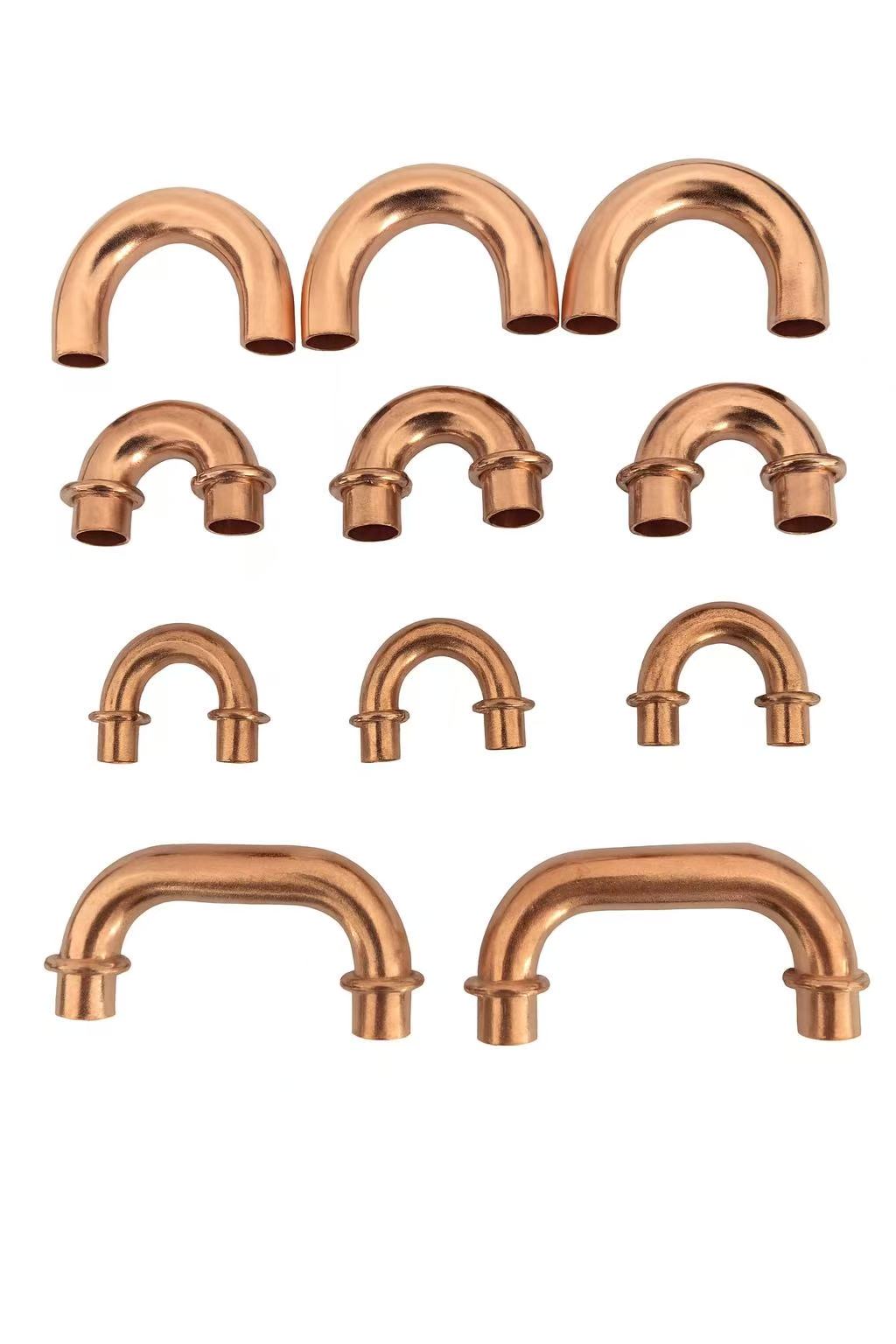

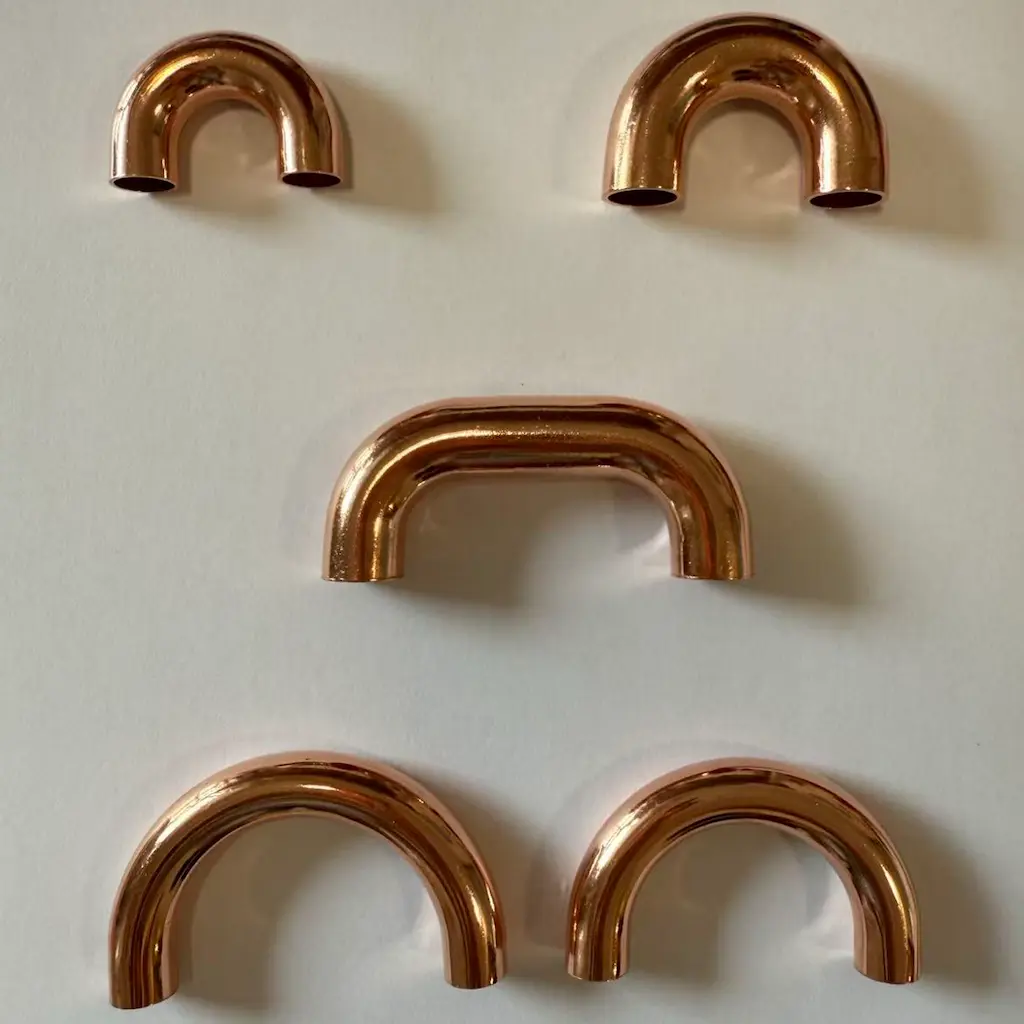

Our copper U-bend fittings (return bends) are precision-engineered components designed for use in heat exchangers, condensers, evaporators and HVAC/R systems. Made from high-quality seamless copper tube, these fittings ensure reliable performance, excellent heat transfer and long service life in demanding refrigeration and air conditioning applications.Key Features
- Material: Premium seamless copper (C12200) compliant with ASTM B743 / B75 standards. (High-strength K65 / CuFe2P alloy variant available upon request for high-pressure CO₂ refrigeration systems).
- Shape: 180° copper U-bends (return bends) for parallel tube connections
- Size Range: Outer diameter from 1/4" to 1-1/8" (approx. 6 mm to 28 mm)
- Applications: Air conditioners, refrigeration systems, condensers, evaporators, chillers and industrial heat exchangers
- Performance: High thermal conductivity, good corrosion resistance and smooth inner surface for efficient heat transfer
- Installation: Easy brazing or welding with accurate tube ends for tight, leak-resistant connections
- Customization: OEM sizes, wall thickness, bending radius and packaging available upon request
Typical Applications
- Fin-tube heat exchanger coils for HVAC/R units
- Condenser and evaporator coils in split and package air conditioners
- Heat pump systems and chiller units
- Refrigeration cabinets, cold rooms and industrial cooling equipment
Benefits
- Provides smooth refrigerant flow with minimal pressure drop between parallel tubes
- Reduces leakage risk with precise sizing and tight tube-end connections
- Simplifies tube layout and coil bending in condenser and evaporator manufacturing
- Consistent dimensions for automated or semi-automated coil production
| Tube OD (inch) | Tube OD (mm) | Standard Wall Thickness (mm) | High-Pressure CO₂ Wall Thickness | Center-to-Center Distance | Primary Application |
|---|---|---|---|---|---|
| 1/4″ | 6.35 | 0.7 – 0.8 | Custom Heavy-Wall | Custom / OEM Layout | Small-capacity coils & capillary distributors |
| 5/16″ | 7.94 | 0.7 – 0.8 | Custom Heavy-Wall | Custom / OEM Layout | General HVAC/R & residential heat pumps |
| 3/8″ | 9.52 | 0.8 – 1.0 | Available in K65 Alloy | Custom / OEM Layout | Common condenser & CO₂ evaporator size |
| 1/2″ | 12.70 | 0.8 – 1.0 | Available in K65 Alloy | Custom / OEM Layout | Medium-capacity subcoolers & heat exchangers |
| 5/8″ | 15.88 | 1.0 – 1.2 | Available in K65 Alloy | Custom / OEM Layout | Commercial refrigeration racks & gas coolers |
| 3/4″ | 19.05 | 1.0 – 1.2 | Available in K65 Alloy | Custom / OEM Layout | Industrial coils & high-capacity chillers |
| 7/8″ | 22.22 | 1.0 – 1.2 | Available in K65 Alloy | Custom / OEM Layout | Large trans-critical CO₂ central systems |
| 1-1/8″ | 28.58 | 1.2 – 1.5 | Available in K65 Alloy | Custom / OEM Layout | Heavy-duty industrial cooling & piping projects |
Customization & Ordering Information
We support full OEM production according to your technical drawings (PDF/DWG) or physical samples. To fast-track your quotation, please specify:
- Required tube outer diameter, wall thickness, and material grade (C12200, K65, B60, or B50).
- Specific metallurgical temper requirements (e.g., ASTM B75/B743 O60 Soft Annealed or O50 Light Annealed).
- Center-to-center distance, leg length, and precise bending radius.
- Target order quantity per size.
- Operating parameters (e.g., Specific refrigerant type, maximum working pressure up to 140 bar).
Also available in aluminum upon request. KAK manufactures both copper and aluminum return bends for HVAC and refrigeration applications, offering lightweight options for custom systems.
Copper U Bend Fittings FAQ
1. What are copper U bend fittings used for?
Copper U bend fittings (return bends) are mainly used in heat exchangers, condensers, evaporators and HVAC/R coil assemblies. They connect two parallel copper tubes to form a continuous flow path and optimize refrigerant or water circulation.
2. What size range of copper U bends do you supply?
We can supply copper U bend fittings in common tube outer diameters from 1/4" to 7/8" (or customized on request). Center-to-center distance (C–C) and leg length can be produced according to your drawing or sample.
3. Which material do you use for the U bends?
Our copper U bends are made from high-purity C12200 / TP2 deoxidized copper tube, suitable for refrigeration and air conditioning systems with good thermal conductivity and corrosion resistance.
4. Are these U bends suitable for refrigeration and air conditioning systems?
Yes. The U bend fittings are specially designed for refrigeration, air conditioning and heat pump systems. They are widely used in fin-tube heat exchangers, condensers and evaporator coils.
5. Can you produce customized U bends according to our drawings?
Of course. We offer OEM and custom fabrication for copper U bend fittings, including special tube sizes, center distances, leg lengths and bending radius. Please send us your drawing or detailed requirements for confirmation.
6. What is the typical wall thickness and working pressure?
Standard wall thickness follows common refrigeration copper tube standards (such as ASTM B75 or equivalent). The working pressure depends on tube size, wall thickness and system design. We can recommend suitable tube specifications based on your working pressure and refrigerant type.
7. What is your minimum order quantity (MOQ) for copper U bend fittings?
For regular sizes, the MOQ is usually one carton per size. For customized sizes or special center distances, the MOQ may be higher. Please contact us with your size list so we can check the exact MOQ for you.
8. How do you pack copper U bend fittings for export?
Copper U bends are normally packed in plastic bags + inner cartons + strong export cartons. Pallet packing is available for LCL or FCL shipments to protect the fittings during transportation. Custom packing with your label or logo can also be arranged.
