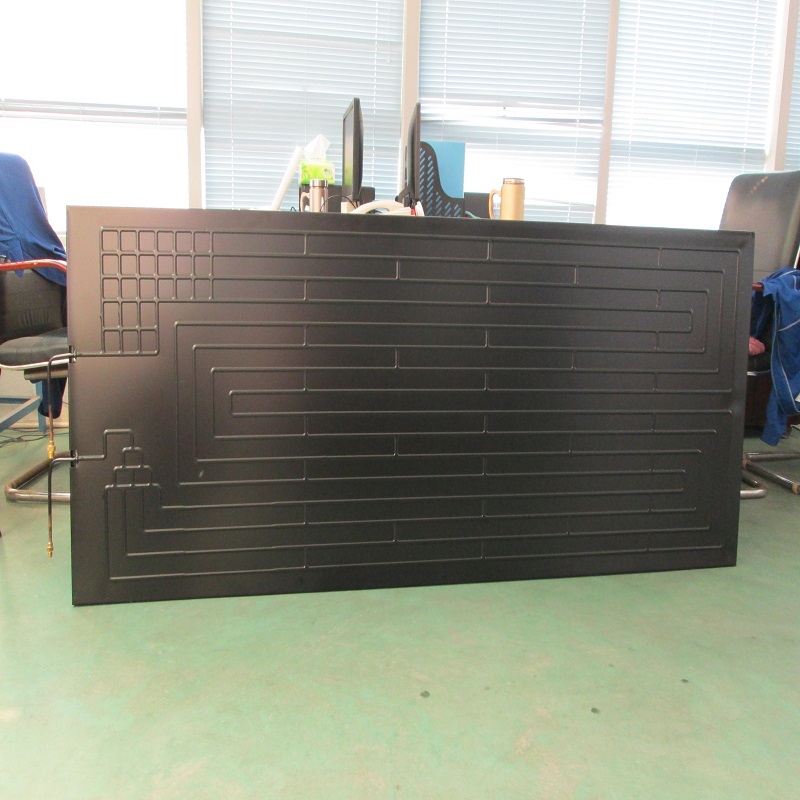

Our thermodynamic solar panels are designed for efficient energy transfer in renewable energy systems, combining lightweight aluminum plates with embedded copper tubing for superior heat exchange performance. With customizable sizes and thickness options, they are ideal for both residential and industrial thermodynamic water heating and heat pump systems.
• Material: High-purity 1060 aluminum plate with integrated copper-aluminum piping connections.
• Surface Finish: Black anodized coating for enhanced solar absorption and corrosion resistance.
• Thickness Options: 1.5 mm, 1.8 mm, 2.0 mm.
• Standard Sizes:
• 2000 × 800 mm
• 1700 × 800 mm
• Customization: Dimensions, thickness, and connection types can be tailored to project requirements.
• Durability: Anti-corrosion treatment ensures long lifespan and reliable outdoor performance.
• Compatibility: Works with thermodynamic water heating systems, solar-assisted heat pumps, and hybrid renewable solutions.
⸻
Applications
• Solar-assisted domestic hot water systems
• Heat pump water heaters
• Industrial thermodynamic heating and cooling systems
• Swimming pool heating solutions
• Energy-efficient HVAC systems
Technical Specifications
| Item | Specification |
|---|---|
| Material | 1060 Aluminum + Copper-Aluminum Piping |
| Surface Treatment | Black anodized / powder-coated finish |
| Thickness Options | 1.5 mm / 1.8 mm / 2.0 mm |
| Standard Sizes | 2000 × 800 mm / 1700 × 800 mm |
| Working Temperature | -20°C to +120°C |
| Max Pressure | Up to 2.5 MPa (25 bar) |
| Connection Type | Copper-Aluminum welded tube interface |
| Customization Available | Yes (size, thickness, connections) |
FAQ
A1: The panel is made of high-purity 1060 aluminum with copper-aluminum pipe connections for excellent heat conductivity and corrosion resistance.
A2: Standard sizes include 2000 × 800 mm and 1700 × 800 mm, with thickness options of 1.5 mm, 1.8 mm, and 2.0 mm.
A3: Yes, we offer full customization for size, thickness, and connection type to meet project requirements.
A4: They are widely used in solar-assisted water heating, heat pumps, HVAC, and industrial thermodynamic systems.
A5: With anodized corrosion protection and durable copper-aluminum connections, the panels are designed for long-term performance in outdoor environments.
