Condenser and Evaporator Coils for HVAC & Refrigeration Systems | Copper Tube Aluminum Fin Design

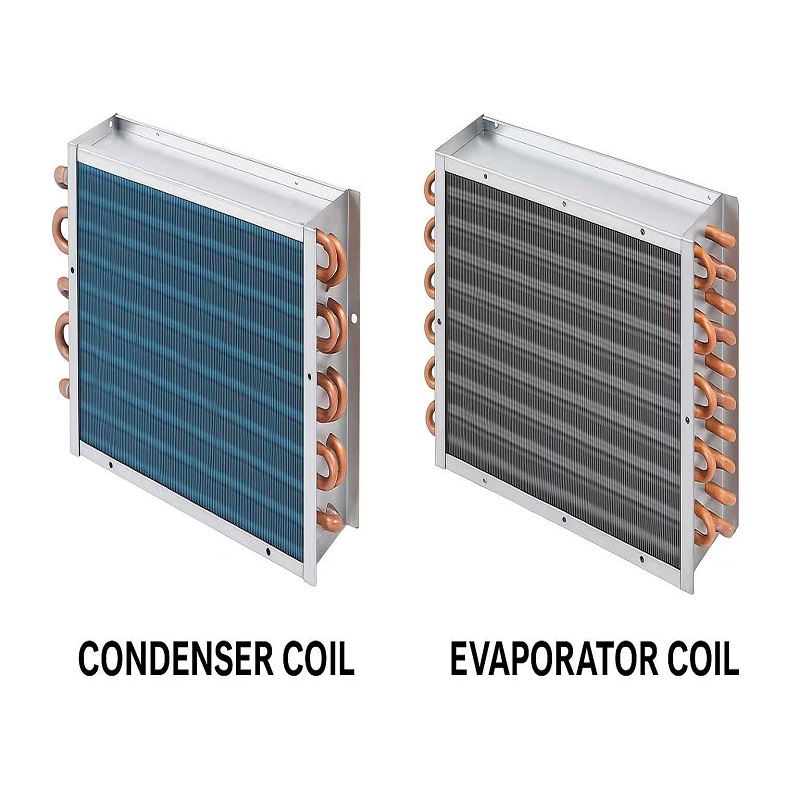

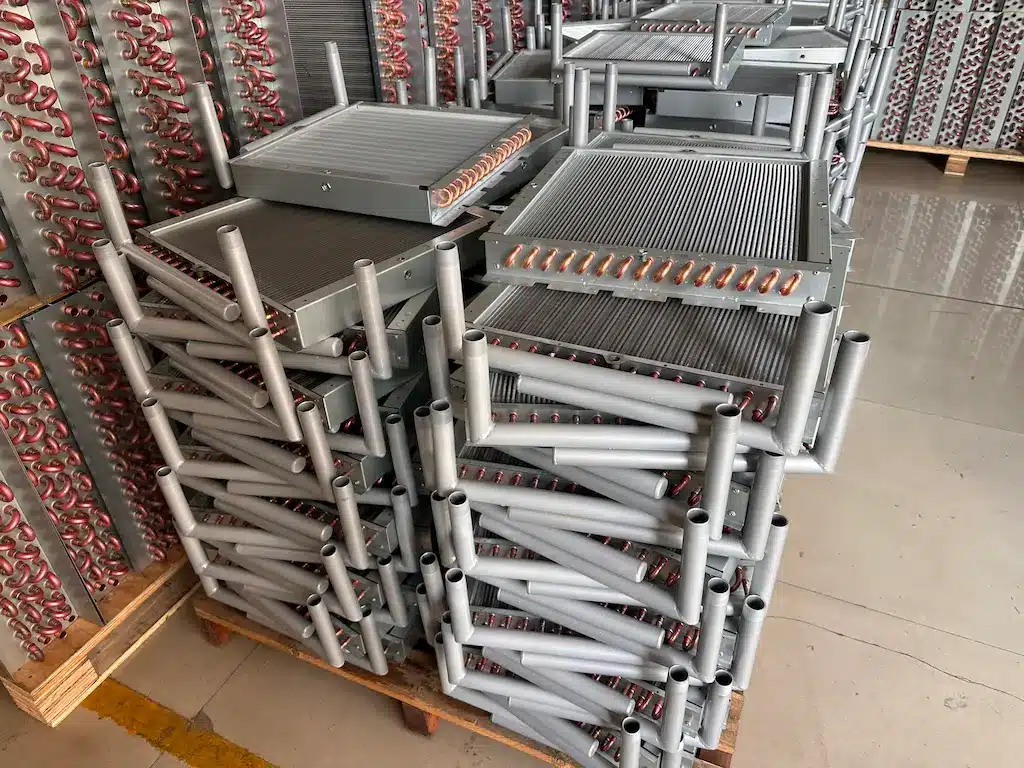

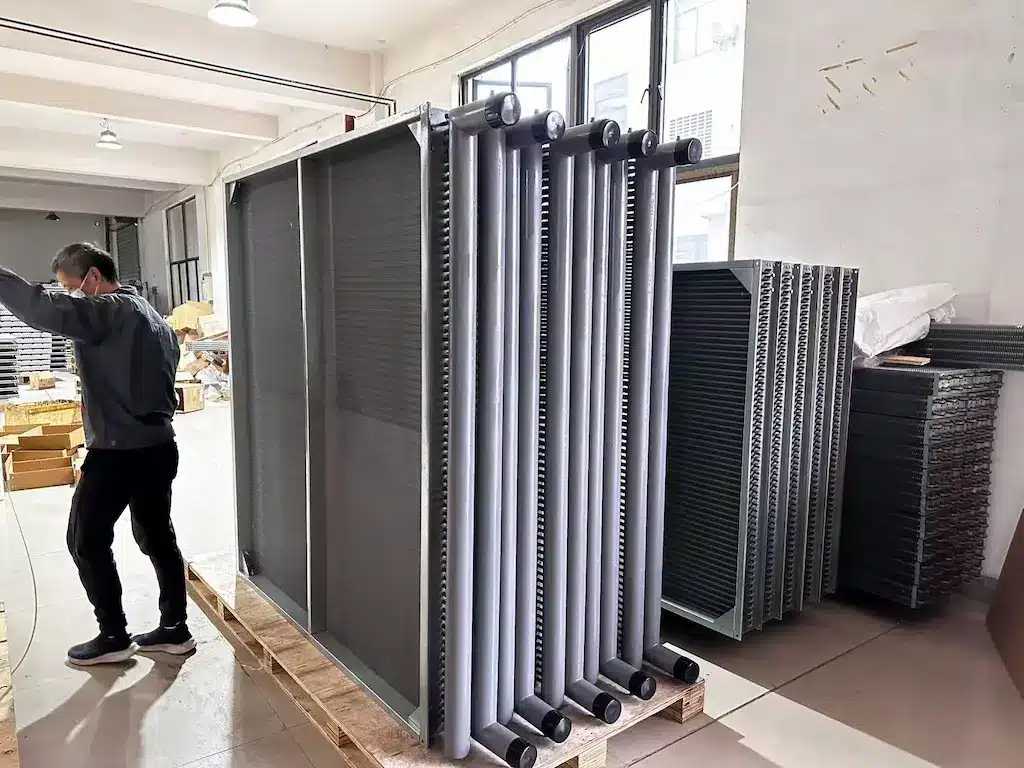

Condenser Coil

The condenser coil is engineered for efficient heat rejection in HVAC and refrigeration systems. Made with copper tubes and aluminum fins, it ensures high thermal conductivity, durability, and energy efficiency. Coils are available in multiple dimensions and fin designs to fit commercial and residential units.

Key Features:
• Copper tube & aluminum fin design for excellent heat transfer
• Anti-corrosion hydrophilic coating optional
• High-pressure resistance up to 3.5 MPa
• Customizable fin pitch, tube diameter, and coil size
• Compatible with R134a, R404A, R410A, R32, R290, and more refrigerants

Applications:
• Air conditioners, heat pumps, and chillers
• Refrigeration condensing units
• Dehumidifiers & air handling units

⸻

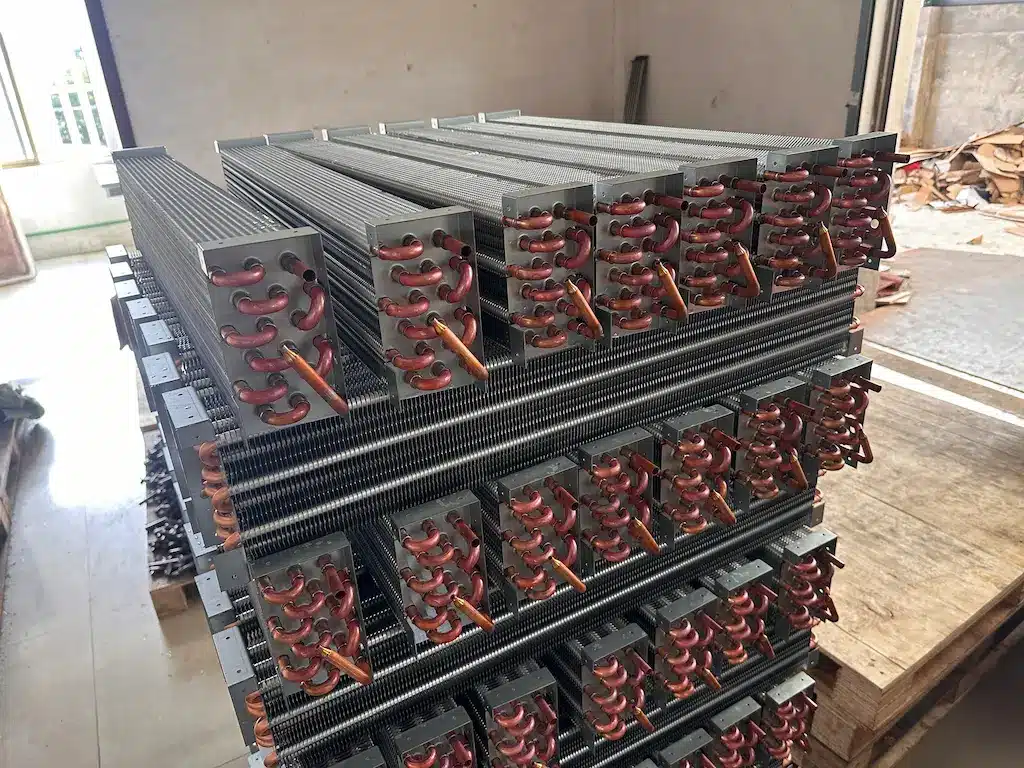

Evaporator Coil

The evaporator coil is designed to absorb heat efficiently from air or fluid in refrigeration and HVAC systems. Manufactured with copper tubes and aluminum fins, it provides fast cooling, high efficiency, and reliable long-term operation.

Key Features:
• Optimized finned structure for maximum surface area
• Copper tube with expanded contact to aluminum fins
• Anti-fungal & anti-corrosion coatings available
• Customizable size, shape, and refrigerant compatibility
• Quiet operation, energy-efficient cooling performance

Applications:
• Split-type and central air conditioners
• Refrigeration cabinets and cold rooms
• Heat pump systems and fan coil units

⸻

Size Chart (Typical Specifications)

Custom coil sizes, tube patterns (3/8”, 5/16”, 7mm), and coatings available.

FAQ
