Copper Capillary Tubes – Technical Overview
KAK copper capillary tubes use premium TP2/T2 copper. As a result, they deliver excellent ductility, corrosion resistance, and dimensional precision.
Each tube is individually packed with desiccant and sealed with rubber or silica gel sleeves to prevent oxidation. The product surface is bright, clean, and suitable for long-term storage.
Key Features
✅ High-precision copper tube with consistent inner bore
✅ Clean surface, moisture-proof sealed packaging
✅ Two coil formats: industrial & retail
✅ Excellent corrosion resistance and thermal conductivity
✅ Long shelf life with anti-oxidation protection
Product Type

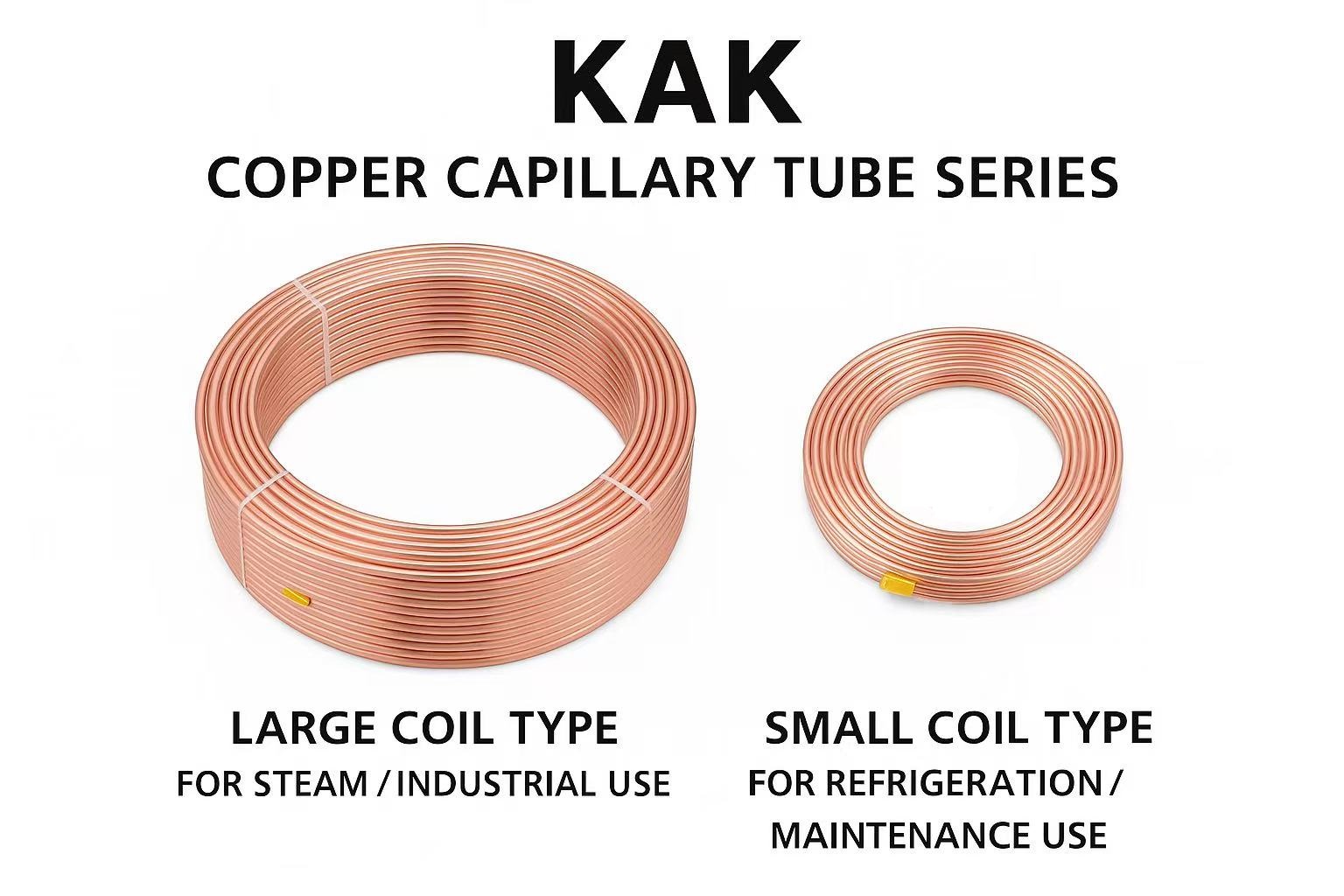

Two types are available:
• Large Coil Type (for steam & industrial use): each coil is independently packaged, POF shrink-wrapped, with ~20 coils per box (≈20kg).

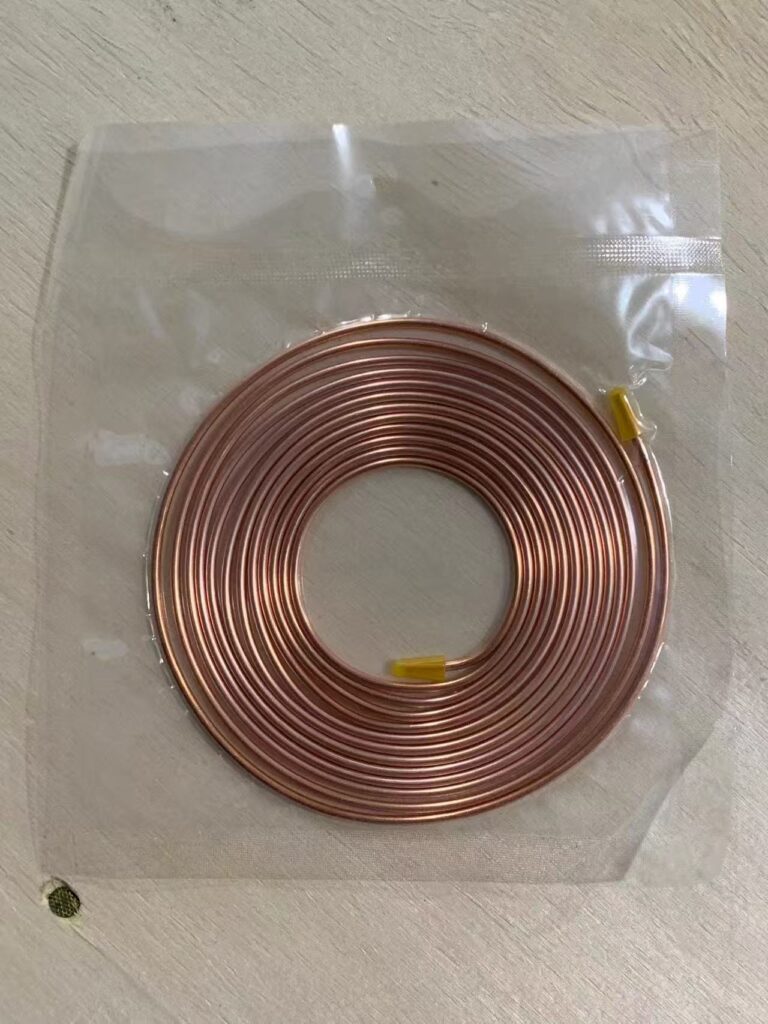

• Small Coil Type (for maintenance or retail use): each coil weighs about 70–80g, 270 coils per box, neatly packed for easy distribution.
Common Applications
These capillary tubes are widely used in:
• Refrigeration & HVAC system throttling
• Air conditioner expansion control
• Steam & heat exchange equipment
• Capillary flow control in household appliances and lab instruments
⸻
Technical Specifications
| Parameter | Specification | Tolerance |
|---|---|---|
| Outside Diameter | Custom (e.g., 1.0–3.0 mm) | ±0.03 mm |
| Inside Diameter | Custom | ±0.02 mm |
| Length | 3 m / coil or customized | ±10 mm |
| Material | TP2 / C12200 Copper | — |
| Surface | Bright Annealed | — |
| Packaging | 270 coils / carton | 35×35×11 cm, 20 kg |
Customization Options
• Tube diameter & length per customer request
• Custom labeling or logo printing on coils
• OEM/ODM for specific HVAC system applications
FAQ – Copper Capillary Tubes
A1. A high-precision copper capillary tubing range for HVAC/R and steam systems, offered in two formats: Large Coil for industrial/long-run use and Small Coil for maintenance/retail use.
A2. Large Coil = independently packed industrial coils for longer assemblies; Small Coil = compact rolls for service/maintenance. Both are sealed with end caps and desiccant.
A3. Typical: OD ±0.03 mm, ID ±0.02 mm. Length tolerance: ±100 mm (Large Coil) and ±10 mm (Small Coil). Custom tolerances available.
A4. TP2/T2 deoxidized copper with clean, bright surface and excellent ductility. Other grades on request.
A5. Each coil is cleaned, ends are plugged with rubber/silica sleeves, desiccant added, then POF shrink-wrapped to prevent oxidation and moisture.
A6. Large Coil: ~20 coils/carton (~20 kg). Small Coil: ~270 coils/carton (~20 kg). Carton size/count can be adjusted.
A7. Suitable for common refrigerants such as R134a, R22, R410A, R32, and hydrocarbons like R290—when used within system pressure/cleanliness requirements.
A8. Yes—OD/ID/length, coil weight, marking, and packaging can be customized per drawings/specs.
A9. Capillary tubing is usually supplied to customer drawings/tolerances. Share your project spec and we’ll confirm compliance options or equivalents.
A10. Refrigeration throttling lines, air-conditioner expansion control, steam/heat exchange equipment, and lab or appliance flow control.
A11. Depend on size and customization. Samples and trial orders are available—send specs for a firm schedule.
